Precision Machining With Reported Dimensions

What this page covers

• Coordinate measuring machine, projector and height gauge inspection
• Dimension reports provided for a project on request
• Quality control at each production stage, as described on the company website

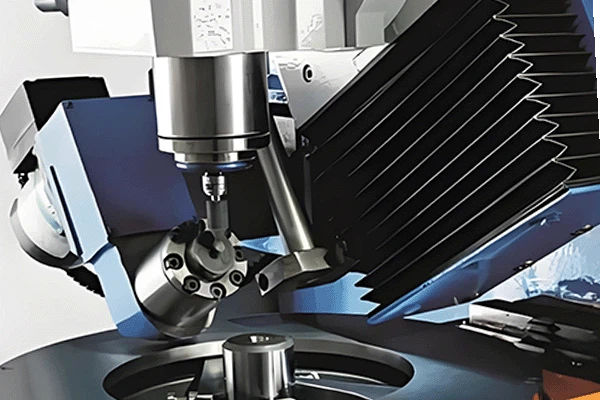

• Milling, turning, grinding and electrical discharge machining for tight features

What to confirm before ordering

On this general precision page, the overall CNC accuracy described is 0.01 mm. That is a general statement only: the tolerance that governs your part is the one written on your drawing and confirmed at quotation. Before ordering, confirm minimum order quantity and lead time for your drawings.

Drawing checklist

Send the drawing with units and scale stated, the material and grade, the critical dimensions and tolerances marked, and the finish required. State the quantity you need checked and the question the part must answer: fit, function or appearance. Uploaded files are used only for the quotation, and non-disclosure agreements are supported.

Quality checks

Parts are inspected with a coordinate measuring machine, a projector and height gauges, with quality control at each production stage, and a dimension report can be provided for a project on request.
